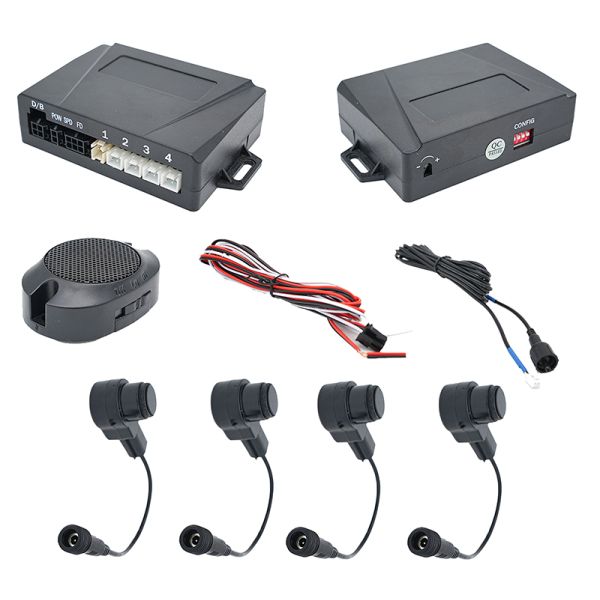

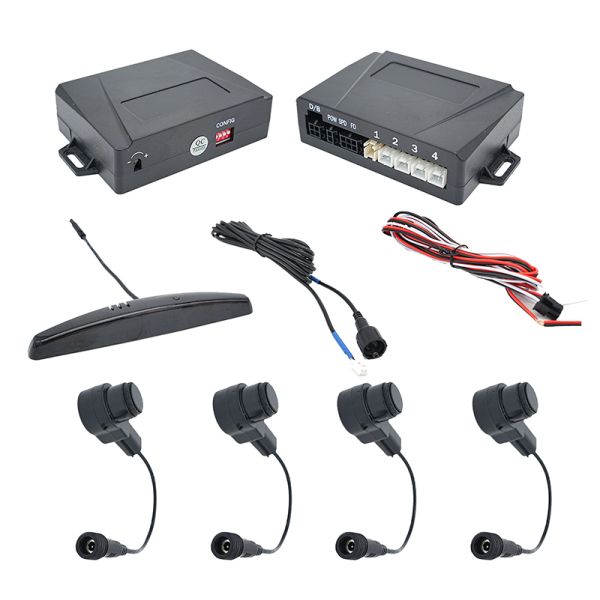

Forward Front And Rear Bumper Garage Backup Car Park Assiast Reverse Parking Sensor

Forward Front And Rear Bumper Garage Backup Car Park Assiast Reverse Parking Sensor

This parking sensor systems are proximity sensors mounted in a vehicle's bumpers that alert the driver to obstacles while parking.

It's a ultrasonic parking reverse sensor system that make ultrasonic sound waves to calculate distance, providing real-time visual

displays and beeping alerts to drivers when that speed up as you get closer to an object.

This is a universal ultrasonic parking sensor system for all cars in aftermaket. The system begins to emit buzzer sound alarm at 30cm,

and beeps faster as you get closer to the object, until you are 30cm away and it makes a constant beep. The volume control allows

you to adjust or mute the volume easily anytime with the on-off switch on buzzer.

Features

1. Front sensor system
2. Rear sensor system
3. Speed mode and brake mode front activation
4. Side sensor limitation to 80cm
5. 25cm offset for towbar and spare tire
6. buzzer sound is adjusted by control box
7. buzzer and LED display can be optional for this kit. Control module, sensor cable, and sensor head are same.
8. IP67 Waterproof connector for each sensor cable. Easy for sensor replacement.
9. Control box with thick pin socket for sensor and power. Plull force is up to 15KG. System will not pull off easily. Free software update at customers side. Sensitivity can be adjusted freely.
10. Install the sensors not less than 45cm to avoid detecting ground. And turn a certain angle for side sensors.

Parameter

LED display and buzzer optional for choice

Detail function
1. Dip swtich to choose front or rear reversing system, speed or brake mode for front sensor system, side limitation to 80cm distance detection
and buzzer volume adjusted.

2. Speed mode or Brake mode choice for dips switch to adjust.

3. side sensor detection distance setting by dip switch.

4. Standalone buzzer sound can be adjusted to high volume 2400Hz and normal 800Hz.

Package
Neutral Package: White box
QTY: 24 SETS .
N.W.:10.0 KGS .
G.W.: 12.8 KGS .
Volume:0.040m³
Shipping:DHL, UPS, FedEx, EMS Express available; Air and Sea shipment available.
