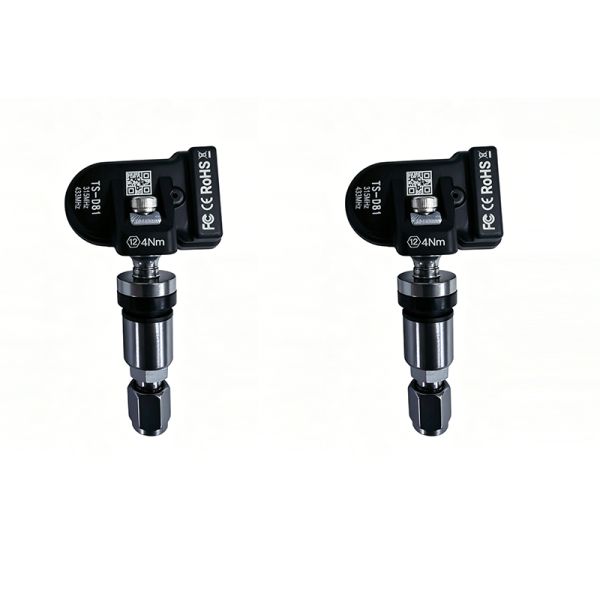

Dacia Logan Dodge Dart E90 Tyre Pressure Tpms Sensor
Our programmable TPMS (Tire Pressure Monitoring System) sensors are compatible with a wide range of vehicles, including protocols from
North America, Europe and Aisa. It can be programmed to match speciic OEM sensors to monitoring tire pressure and temperature to essure driving
safety. It will help distributors to reduce the sensor inventory in the near future.
Key Features of programmable TPMS Sensors:
- Customizable Settings: sensor ID can be adjustable with various vehicles
- High Precision: accurate measurement of earl-time tire pressure and temperature
- Durable Design: withstand high temperatures, vibrations, and harsh road conditions supported
- Long Battery Life: more than 5 years lifespan with imported battery
- Easy programming: support OBD, Mobile programmer and handhold programming tool for sensor programming.
Model Functions: TS-D81
- Capable of automatically creating, copy ID and manual input sensor ID
- Cover over 98% car models worldwide, including Aisa, Europe and North America
- Unlimited programming supported.
- 315Mhz and 433Mhz in one sensor
- Pressure range:0-8bar
- Voltage:3.0V
- Imported IC and domestic IC available
- Battery life: more than 5 years
- Warranty:2 years
- Handheld programmer and mobile phone programmer workable
Product Parameter
| Operating temperature |
-40 ° C~+125 ° C |
| Relative humidity |
45%~95% |
| Storage temperature range |
-40 ° C ~+125 ° C |
| Working temperature |
-40ºC~105ºC |
| Pressure range |
0-900Kpa |
| Installation position |
automobile wheel hub |
| Quiescent current |
0.3μA≤I≤1.0μA |
| Emission current |
1.0mA ≤I≤3.5mA |
| Operating voltage |
2.90V≤U≤3.50V |
| Emission power |
8dBm |
| Weight |
35g |
| Service life |
CR2050 more than 3 years |
| Waterproofing rate |
IP67 |
| Transmitting power |
<10dBm |
| Transmitting frequency |
433.92MHz&315MHz |
| Temperature error |
20~70 ° C : ±3 ° C,
-40~-20ºC,70~125ºC :±5ºC |
| Pressure error |
0 ~50ºC :± 0.07bar,
-40~0ºC , 50~85ºC :± 0.1bar |
It can be programmed both by handheld tool and bluetooth mobile programmer OBD700.
Company Information
Shenzhen June Electronic Co., Ltd. is special in car accessary development, including tpms, led headlight bulb and parking sensors. Especially in tire pressure diagnosis tools, programmers and universal programmable tpms sensors for the OE and aftermarket for years. We doing our best to offer the the most stable product for customers over the world.
FAQ
Q1: What is the frequency and application?
A1: Sensor frequency is 315Mhz/433Mhz. It applied for Asia, Europe and North America aftermarket OE tpms sensor replacement and winter tires.
Q2: What's your package?
A2: Our standard package is carton for 50pcs and 200pcs.
Q3: What is your MOQ?
A3: 100 pieces for sensors.Sample is available.
Q4: Do you offer OEM and ODM service?
A4: Yes, OEM and ODM service available.
Q5: When is the lead time?
A5:1-10 working days upon your order of products.
Q6: What about quality warranty?
A6:2 years for tpms sensor and 1 year for programming tool.
Q7: What is Price Term?
A7: EXW. FOB Shenzhen, CIF accepted.
Q8: How about Payment Term?
A8: TT 50% in advance, balance before shipment; L/C, Paypal, Western Union.
Q9: What about shipment?
A9: DHL, EMS, FedEx, UPS, TNT Express; By air or by sea
