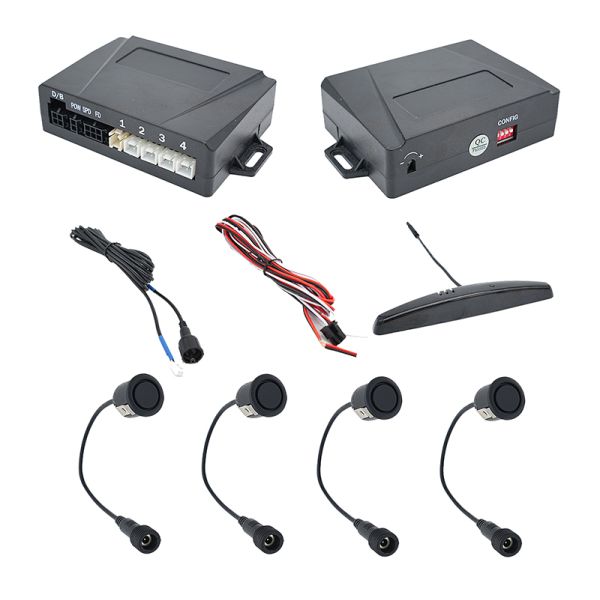

Universal Ultrasonic Rear Bumper Parking Sensor with Display Buzzer Backup Aid

Rear Bumper Parking Assist Car Backup Aid Display Buzzer Warning Universal Ultrasonic Garage Reverse Parking Sensor

Do you want to equip your cars with the ultimate aftermarket safety upgrade parking sensor? This is a universal ultrasonic parking sensor system that designes

to fit any car.

This premium ultrasonic parking system provides real-time distance feedback, ensuring confident parking whether you are pulling forward or reversing. It both works

for front bumper parking sensor and rear bumper car reverse sensor system. One set with both two functions free change.

The universal parking sensor system uses an intuitive audio alert system to guide you safely into tight spots:

• Detection Zones: Audible beeping begins at a safe distance and increases in frequency as you get closer to an obstacle.
• Critical Proximity: Once you are within 30cm, the system transitions to a solid, continuous warning tone.
• Volume Flexibility: Easily adjust the alert volume or mute the system entirely using the dedicated on/off switch on the buzzer.

Features

1. Front sensor system
2. Rear sensor system
3. Speed mode and brake mode front activation
4. Side sensor limitation to 80cm
5. 25cm offset for towbar and spare tire
6. buzzer sound is adjusted by control box
7. buzzer, speaker, LED display can be optional for this kit. Control module, sensor cable, and sensor head are same.
8. IP67 Waterproof connector for each sensor cable. Easy for sensor replacement.
9. Control box with thick pin socket for sensor and power. Plull force is up to 15KG. System will not pull off easily. Free software update at customers side. Sensitivity can be adjusted freely.
10. Install the sensors not less than 45cm to avoid detecting ground. And turn a certain angle for side sensors.

Parameter

Advanced DIP Switch Settings

Eliminate false alarms and adapt the system to your car's specific shape using the built-in DIP switches:

1. Dip swtich to choose front or rear reversing system, speed or brake mode for front sensor system, side limitation to 80cm distance detection

and buzzer volume adjusted.

2. Speed mode or Brake mode choice for dips switch to adjust.

3. Side Sensor Limitation: Prevent annoying false triggers from far-away side objects by restricting the side sensor range to 80cm.

4. Standalone buzzer sound can be adjusted to high volume 2400Hz and normal 800Hz.

5. Spare tire or a tow compatible design. Toggle the switch to program the system to ignore these permanent attachments to prevent constant false alarms.

6. Premium Display Upgrades

In addition to the standard audio buzzer or speaker, you can choose to upgrade to our Multi-Functional LED Display:

• Dual Alerts: Combines visual light indicators with a built-in buzzer.
• Flexible Units: View distance measurements in your preferred format, including cm, dm, meters, feet, or inches.
• Flexible Mounting: The display can be sleekly mounted right on your dashboard, or flipped upside down and attached above your rearview mirror for a seamless look.

Package
Neutral Package: White box
QTY: 24 SETS .
N.W.:10.0 KGS .
G.W.: 12.8 KGS .
Volume:0.040m³
Shipping:DHL, UPS, FedEx, EMS Express available; Air and Sea shipment available.
