Auto Park Front Rear Bumper Original Screen Display Car Reverse Assist Parking Sensor System
This is a universal ultrasonic parking sensor system for all cars in aftermaket. It is the best solution for giving you advice on how far away an object is when you are reversing and/or moving forward. The system begins to emit buzzer sound alarm at 30cm, and beeps faster as you get closer to the object, until you are 30cm away and it makes a constant beep. The volume control allows you to adjust or mute the volume easily anytime with the on-off switch on buzzer.

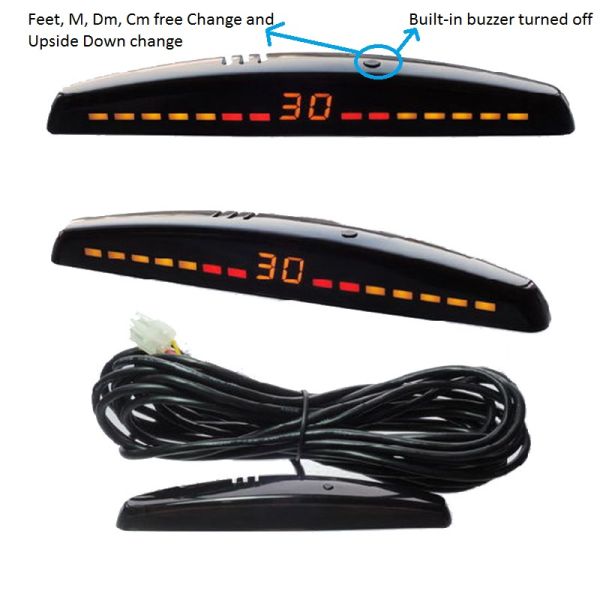

Besides the buzzer, speaker for choice, customer can choose LED display with the kit. The led display have led light and built-in buzzer to alert
driver. The distance can be displayed in cm, dm, meter, feet and inch. Customer can choose the distance unit he wants. What's more, the display
can be installed on dashboard, and upside down from the rear view mirror.
Features
- Front sensor system
- Rear sensor system
- Speed mode and brake mode front activation
- Side sensor limitation to 80cm
- 25cm offset for towbar and spare tire
- buzzer sound is adjusted by control box

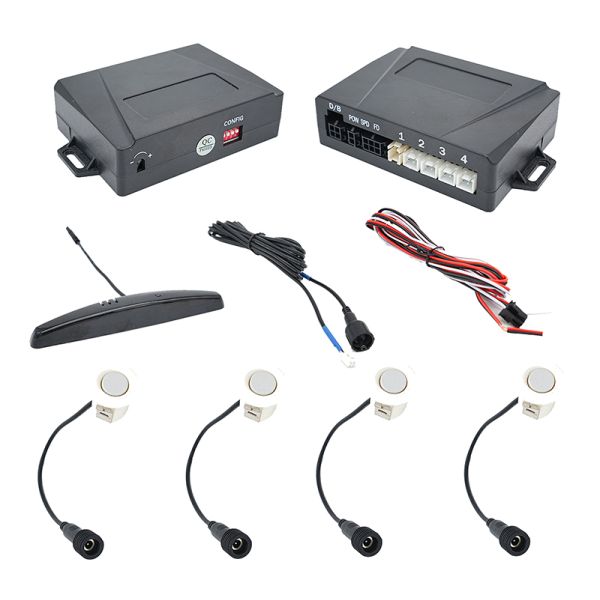

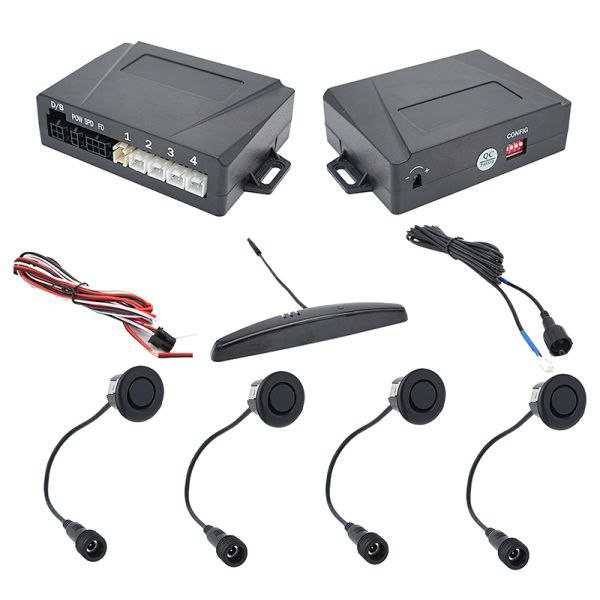

- buzzer, speaker, LED display can be optional for this kit. Control module, sensor cable, and sensor head are same.
- IP67 Waterproof connector for each sensor cable. Easy for sensor replacement.
- Control box with thick pin socket for sensor and power. Plull force is up to 15KG. System will not pull off easily. Free software update at customers side. Sensitivity can be adjusted freely.
- Install the sensors not less than 45cm to avoid detecting ground. And turn a certain angle for side sensors.
Parameter
| Model number |
CD01-4T2. |
| Sensor diameter |
18.5mm |
| Sensor cable |
2.5m with IP67 waterproof connector. |
| Sensor detection |
0-2.5m. |
| Display range |
30-80cm for front, 30cn-2.5m for rear |
| Built-in buzzer range |
30cm-1.5m for rear, 0-30cm and 80cm for front. |
| Warranty |
1 year |
Detail function

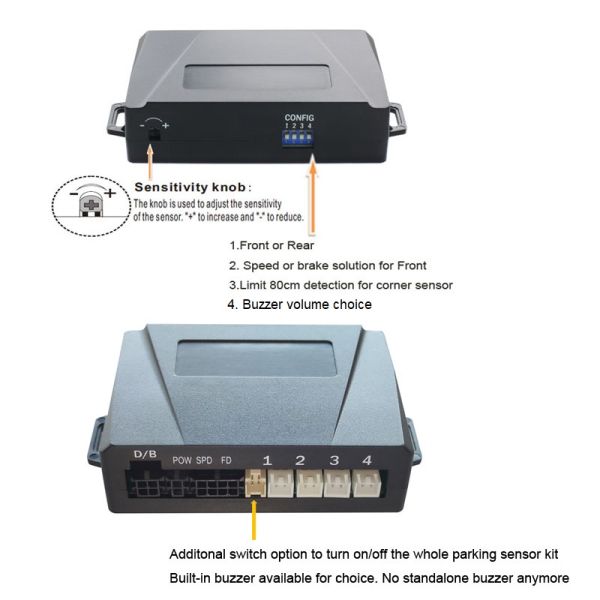

1. Dip swtich to choose front or rear reversing system, speed or brake mode for front sensor system, side limitation to 80cm distance detection
and buzzer volume adjusted.
2. Speed mode or Brake mode choice for dips switch to adjust.

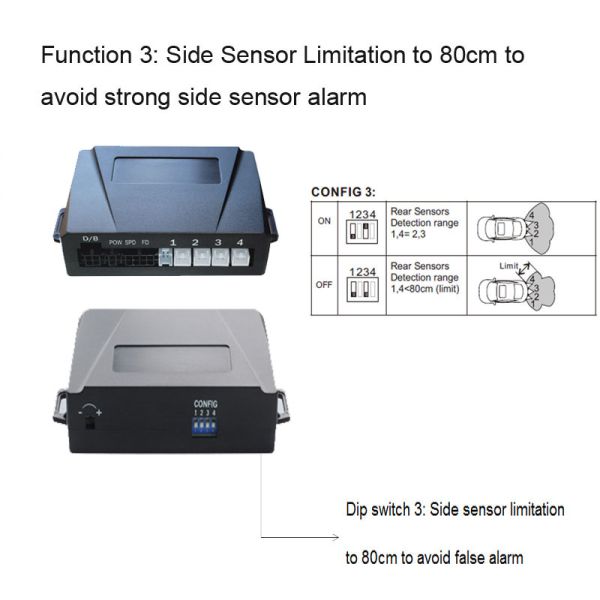

3. side sensor detection distance setting by dip switch.
4. Standalone buzzer sound can be adjusted to high volume 2400Hz and normal 800Hz.
Package
Neutral Package: White box
QTY: 24 SETS .
N.W.:10.0 KGS .
G.W.: 12.8 KGS .
Volume:0.040m³
Shipping:DHL, UPS, FedEx, EMS Express available; Air and Sea shipment available.
